Independent Phase Regulation vs. Unified Regulation in a 3-Phase Stabilizer

A 380 V three-phase supply does not necessarily deliver the same voltage on L1, L2, and L3. Consider a factory where the measured input is:

• L1: 340 V
• L2: 375 V
• L3: 410 V

These phases do not need the same correction. L1 needs to be boosted, L2 requires only a small adjustment, and L3 needs to be reduced.

This is the practical difference between an independent phase voltage stabilizer and a three-phase stabilizer using unified voltage regulation.

Independent phase regulation allows L1, L2, and L3 to be controlled separately. Unified regulation controls the three phases as a coordinated system and is generally more suitable when their voltages rise and fall by similar amounts.

For an industrial buyer, the question is not which design sounds more advanced. The useful question is: do the three phases actually require different voltage corrections?

Independent Phase Regulation vs. Unified Regulation

With independent phase regulation, each phase has its own voltage sensing and regulation path. Depending on the stabilizer topology, separate servo mechanisms or electronic control modules can apply different compensation to each phase.

Using the example above:

Phase	Input Voltage	Target Output	Required Action
L1	340 V	380 V	Boost
L2	375 V	380 V	Small boost
L3	410 V	380 V	Reduce

An independently regulated stabilizer can respond to these conditions separately. In a servo-type design, for example, each control loop monitors its phase voltage and adjusts the corresponding compensation circuit toward the required output.

Now consider another supply:

350 V / 352 V / 351 V

All three phases are low by approximately the same amount. Although the supply has an undervoltage problem, it does not necessarily require independent regulation. A properly selected unified three-phase stabilizer may be sufficient.

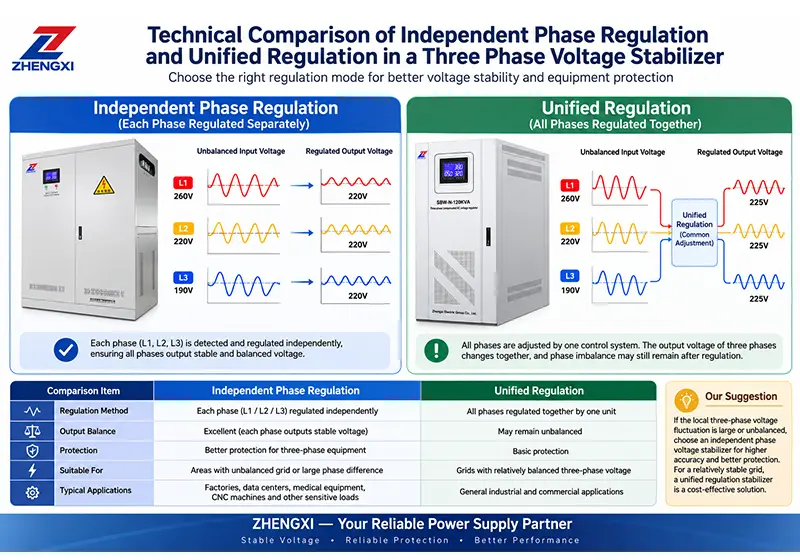

Technical Comparison

Feature	Independent Phase Regulation	Unified Regulation
Phase control	Each phase regulated separately	Three phases regulated as a coordinated system
Balanced voltage fluctuation	Suitable	Suitable
Unequal phase voltages	Better suited	Depends on design and degree of imbalance
Different correction on each phase	Possible, depending on design	Generally more limited
Control complexity	Higher	Lower
Typical equipment cost	Higher	Lower
Typical application	Uneven or irregular three-phase supplies	Relatively balanced three-phase supplies

Why Three-Phase Voltage Unbalance Matters

Three phase unbalanced voltage is more than a difference between three numbers on a voltmeter. It is an established power-quality concern, particularly in systems supplying induction motors, pumps, compressors, HVAC equipment, and other three-phase loads.

IEC 61000-4-30 defines measurement methods for power-quality parameters including supply voltage magnitude, voltage dips and swells, harmonics, interruptions, and supply voltage unbalance.

For formal power-quality assessment, voltage unbalance can be evaluated using positive- and negative-sequence components:

Voltage Unbalance (%) = Negative-Sequence Voltage / Positive-Sequence Voltage × 100

This means that simply subtracting the lowest phase voltage from the highest is not a complete engineering assessment of voltage unbalance.

Motor applications deserve particular attention. ABB technical guidance identifies voltage imbalance as a condition that can increase motor losses and heating and may require derating when the imbalance becomes excessive.

For voltage stabilizer selection, however, recording the actual L1, L2, and L3 voltage ranges remains extremely useful. It shows whether all three phases require similar correction or whether each phase behaves differently.

Do You Actually Need Independent Phase Regulation?

There is no single phase-voltage difference that automatically means an installation must use independent regulation. The decision depends on the measured voltage range, how frequently the condition occurs, load characteristics, motor starting conditions, required output tolerance, and the regulation capability of the stabilizer itself.

The following examples provide a useful first-stage assessment:

Site Condition	What It May Indicate	Recommended Action
350 / 352 / 354 V	Relatively balanced undervoltage	Unified regulation may be sufficient
340 / 375 / 410 V	Different correction required on each phase	Evaluate independent phase regulation
All phases drop during motor starting	Starting-current or source-impedance issue	Check motor starting current and stabilizer capacity
One phase remains much lower	Possible feeder, connection, transformer, or load-distribution issue	Investigate the upstream electrical system
Voltage is normal but THD is high	Harmonic distortion	Voltage regulation alone may not solve the problem
One phase disappears intermittently	Possible phase-loss fault	Repair the fault and provide appropriate protection

When Independent Phase Regulation Makes Sense

An independent phase voltage stabilizer is worth evaluating when site measurements repeatedly show that individual phases require substantially different corrections.

Typical situations include:

• factories with unevenly distributed single-phase loads;
• remote industrial facilities supplied through long or weak feeders;
• sites where L1, L2, and L3 have noticeably different voltage ranges;
• production lines combining three-phase and single-phase equipment;
• installations where one phase may require boosting while another requires reducing.

For example, repeated readings around 335 / 370 / 405 V indicate a different problem from a supply that moves between 345 / 347 / 346 V and 400 / 402 / 401 V. Both may be described by the operator as “unstable 380 V power,” but their regulation requirements are not the same.

When Unified Regulation May Be Enough

If the three phases remain relatively close together as the supply rises and falls, unified regulation may be the more practical and economical solution.

In that case, greater attention should be given to the stabilizer’s input voltage range, output accuracy, rated capacity, overload capability, regulation speed, and load characteristics rather than paying for independent phase control that the installation may not need.

Do Not Use a Stabilizer to Hide an Electrical Fault

An independent phase stabilizer can correct voltage magnitude within its designed operating range, but it is not a universal power-quality solution.

Independent regulation does not by itself repair:

• phase loss or incorrect phase sequence;
• loose or damaged electrical connections;
• upstream transformer overload;
• severe harmonic distortion from VFDs or other nonlinear loads;
• poor load distribution;
• excessive neutral current;
• complete power interruptions;
• very short or deep voltage sags outside the stabilizer’s response capability.

Suppose L2 is consistently much lower than L1 and L3. The cause could be an overloaded phase, a loose cable termination, a transformer problem, or uneven load distribution. Compensating L2 with a stabilizer may improve the output voltage, but it does not remove the underlying fault.

The better engineering sequence is simple: identify abnormal electrical conditions first, then determine what voltage regulation is still required.

Measure Voltage Under Real Operating Conditions

One of the most common mistakes in stabilizer selection is providing only the nominal system voltage.

A request such as “We need a 200 kVA stabilizer for a 380 V system“ does not tell the manufacturer whether the supply is balanced, how low the voltage falls, or whether a large motor is responsible for the voltage drop.

For a more accurate selection, provide:

• L1 minimum and maximum voltage;
• L2 minimum and maximum voltage;
• L3 minimum and maximum voltage;
• normal operating current or total load kVA;
• maximum simultaneous load;
• largest motor or compressor rating;
• motor starting method, such as DOL, star-delta, soft starter, or VFD;
• required output voltage and tolerance;
• frequency;
• ambient temperature and installation altitude.

If voltage varies significantly during the day, measurements from a voltage data logger or power-quality analyzer are more useful than a single multimeter reading.

Example of Useful Site Data

System: 380 V, 50 Hz, three phase
L1 range: 325–390 V
L2 range: 350–405 V
L3 range: 365–425 V
Maximum load: 180 kVA
Largest motor: 45 kW
Starting method: Star-delta
Required output: 380 V ±3%

This information allows the manufacturer to evaluate the regulation method, required input range, stabilizer capacity, motor-starting conditions, and protection configuration.

Regulation method and kVA sizing should be treated as related but separate decisions. Even when independent phase regulation is required, the stabilizer must still be sized for the actual load, minimum input voltage, and any significant motor starting current.

What B2B Buyers Should Confirm Before Ordering

Two three-phase stabilizers with the same nominal kVA rating may have very different operating capabilities. When comparing quotations, look beyond capacity and price.

Parameter	What to Confirm
Rated capacity	Continuous usable kVA under actual operating conditions
Input voltage range	Minimum and maximum allowable input voltage
Regulation method	Independent phase or unified regulation
Output accuracy	Permitted output-voltage tolerance
Regulation speed	Response to changing input voltage
Overload capability	Permissible overload percentage and duration
Motor starting	Whether starting current has been considered in sizing
Bypass	Manual, automatic, or maintenance bypass
Protection	Over/undervoltage, overload, short circuit, phase protection, etc.
Installation conditions	Temperature, altitude, enclosure, ventilation, and cooling requirements

One specification deserves particular attention: does the quoted kVA remain available across the full specified input-voltage range?

At lower input voltage, current increases for a given power requirement. For wide-input-range projects, this can affect transformer windings, conductors, regulating components, thermal design, and ultimately the usable capacity of the stabilizer.

FAQ

Final Selection

A supply measuring 350 / 352 / 354 V presents a very different regulation requirement from one measuring 340 / 375 / 410 V, even though both may be described simply as an unstable 380 V supply.

The right three-phase stabilizer is therefore not necessarily the one with the most complex regulation system. It is the one matched to the site’s actual phase-voltage range, load characteristics, starting conditions, and required output performance.

ZHENGXI manufactures three-phase voltage stabilizers with independent phase and unified regulation configurations for industrial applications. For project evaluation, provide your L1/L2/L3 minimum and maximum voltage, total load, largest motor or compressor, starting method, required output voltage, and installation conditions. These parameters allow the regulation method, input range, and stabilizer capacity to be evaluated before quotation.
