Coils of wires play an important role in most power systems, including transformers and voltage regulators as well as industry-specific motors and generators.
Even though the coil is just a wire winding, its design has a significant impact on how effectively the system will function, since poor-quality wire winding causes overheating and energy losses that can result in system failure.
The knowledge about the operation of electric coils allows engineers and users to select a proper power source for harsh conditions.
What Is an Electrical Coil?
An electrical coil is a conductor—usually copper or aluminum wire—wound into a spiral or helical shape. When electric current flows through the winding, the coil generates a magnetic field.
This magnetic field allows the coil to perform several important electrical functions in modern power and electronic systems.
Electromagnetic Induction
Coils generate magnetic fields that enable induction and energy transfer between circuits.
Energy Transfer
Widely used in transformers and inductive systems to transfer electrical energy efficiently.
Voltage Conversion
Helps step up or step down voltage levels in electrical distribution systems.
Signal Filtering
Used in inductors and filters to reduce electrical noise and stabilize signals.
Magnetic Field Generation
Creates controlled magnetic fields for motors, relays, and electromagnetic devices.
Temporary Energy Storage
Stores energy briefly in magnetic form for switching and power regulation applications.
Common Applications of Electrical Coils
Without electrical coils, most modern electrical and electronic systems would not function properly.
How Does a Coil Work?
When electric current passes through a wire winding, it creates a magnetic field around the coil. This principle is based on electromagnetic induction discovered by Michael Faraday.
The strength of the magnetic field depends on several factors:
- Number of coil turns
- Current level
- Wire material
- Core material
- Coil spacing and geometry
In AC power systems, changing magnetic fields can induce voltage in nearby windings. This is the basic operating principle behind transformers, inductors, and many industrial electromagnetic devices.
In simple terms, coils allow electrical energy and magnetic energy to convert back and forth efficiently.
Main Functions of Electrical Coils
1. Energy Transfer in Transformers
One of the most important applications of coils is inside transformers where electrical energy is transferred through electromagnetic induction.
A transformer typically contains:
- Primary winding
- Secondary winding
- Magnetic core
When AC flows through the primary winding, it creates a changing magnetic field which induces voltage in the secondary winding.
Voltage step-up • Voltage step-down • Isolation • Efficient transmission
High-quality copper windings help improve efficiency, reduce heat generation, and maintain stable output voltage.
2. Voltage Regulation in Stabilizers and AVRs
Electrical coils are essential components in servo stabilizers and automatic voltage regulators used to maintain stable output power.
- Voltage compensation
- Stable output
- Noise reduction
- Equipment protection
- Power quality improvement
Buck-boost transformer windings and toroidal coils are commonly used for automatic voltage regulation.
3. Magnetic Field Generation
Many industrial devices depend on coils to create controlled magnetic fields.
- Relays
- Solenoid valves
- Contactors
- Magnetic lifting systems
- MRI equipment
- Automation systems
When energized, coils create magnetic force capable of moving mechanical components and activating switching mechanisms.
4. Energy Storage in Inductors
Inductors are specially designed coils that temporarily store energy in magnetic fields.
- Smooth current flow
- Reduce ripple
- Suppress noise
- Stabilize switching circuits
5. Energy Conversion in Motors and Generators
Electric motors and generators rely heavily on coil windings for electromagnetic energy conversion.
In Motors:
Convert electrical energy into rotation
In Generators:
Convert mechanical energy into electricity
- Industrial motors
- EV systems
- Wind turbines
- HVAC equipment
- Rail systems
- Hydroelectric generators
Modern efficiency improvements largely depend on optimized winding structures and insulation systems.
Types of Electrical Coils
Different applications require different coil structures and core materials.
| Coil Type | Main Application | Key Advantage |
|---|---|---|
| Air Core Coil | RF circuits | Low core loss |
| Iron Core Coil | Transformers | High magnetic efficiency |
| Ferrite Core Coil | High-frequency electronics | Reduced eddy current loss |

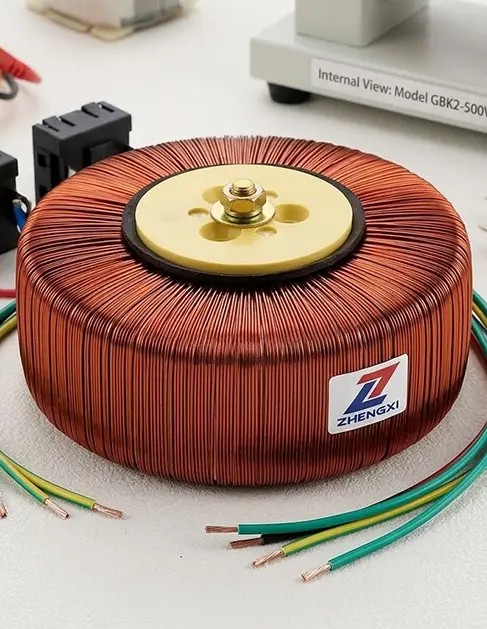

| Toroidal Coil | Voltage stabilizers | Compact structure |
| Solenoid Coil | Automation systems | Linear motion control |
Selecting the correct coil depends on:
- Voltage level
- Current rating
- Operating frequency
- Thermal performance
- Installation environment
Copper Coil vs Aluminum Coil
Copper Coil Advantages
Copper is the preferred winding material in most industrial electrical equipment because it offers:
- High electrical conductivity
- Lower resistance
- Better thermal performance
- Higher efficiency
- Longer service life
Copper transformer windings are widely used in industrial stabilizers, dry-type transformers, and power distribution systems where reliability is critical.
Aluminum Coil Advantages
Aluminum windings are sometimes used in budget-oriented systems because they are:
- Lighter in weight
- Lower in material cost
However, aluminum coils generally require:
- Larger conductor size
- More installation space
- Higher maintenance attention
For high-load industrial applications, copper windings are usually the preferred choice.
Common Coil Failures in Industrial Equipment
Common Problems
Typical Causes
- Inferior copper materials
- Loose winding structure
- Poor insulation treatment
- Inadequate cooling design
- Overloading conditions
How Industrial Coils Are Manufactured
Conductor Selection
High-purity copper or aluminum conductors are selected based on current and efficiency requirements.
Coil Winding
Automatic winding machines ensure accurate turns, spacing, and winding tension.
Insulation Processing
Insulation layers improve electrical safety and thermal resistance.
Vacuum Varnish Treatment
VPI technology improves insulation strength and moisture resistance.
Drying and Curing
Controlled drying enhances mechanical stability and insulation durability.
Electrical Testing
Coil Applications Across Industries
Industrial Manufacturing
- CNC equipment
- Welding machines
- Conveyor systems
- Automation equipment
Renewable Energy
- Solar inverters
- Wind power systems
- Energy storage systems
Healthcare
- MRI equipment
- Diagnostic systems
- Laboratory instruments
Consumer Electronics
- Chargers
- Audio systems
- Wireless charging devices
Transportation
- Electric vehicles
- Railway systems
- Marine electrical equipment
Coil vs Inductor vs Transformer
These terms are often confused because they are closely related.
| Component | Main Function | Contains Coil? |
|---|---|---|
| Coil | Generates magnetic field | Yes |
| Inductor | Stores magnetic energy | Yes |
| Transformer | Transfers electrical energy | Yes |
In simple terms:
- A coil is the physical winding itself.
- An inductor is an electronic component based on a coil.
- A transformer uses multiple coils to transfer electrical energy between circuits.
How to Choose the Right Coil
Voltage and Current Capacity
The coil must safely support the required electrical load to avoid overheating, efficiency loss, or insulation damage.
Operating Frequency
High-frequency systems require specialized magnetic core materials to minimize energy loss and improve performance.
Thermal Performance
Lower temperature rise helps extend service life while improving operational stability and reliability.
Insulation Class
Industrial environments often demand higher insulation grades to ensure electrical safety and durability.
Environmental Conditions
Dust, humidity, vibration, and high ambient temperatures can all influence coil performance and lifespan.
Manufacturing Quality
Reliable winding structures and advanced insulation processing are critical for stable long-term operation.
Why Coil Quality Matters
The quality of an electrical coil directly impacts:
- Energy efficiency
- Voltage stability
- Thermal management
- Equipment safety
- Operational lifespan
Poor-quality coils can increase energy consumption and lead to unexpected equipment failure.
In industrial power systems, investing in high-quality copper winding technology often reduces long-term operating costs and improves overall system reliability.
FAQ
The main purpose of a coil is to generate a magnetic field when electric current flows through it. This magnetic field enables voltage conversion, energy transfer, filtering, and electromagnetic control.
Copper coils offer higher conductivity, lower resistance, better heat dissipation, and longer service life compared to many alternative materials.
Common causes include overloading, poor insulation, low-quality copper materials, loose winding structure, and insufficient cooling.
Yes. Inductor coils can temporarily store energy in a magnetic field and release it when needed to stabilize electrical circuits.
Toroidal coils and buck-boost transformer windings are commonly used in servo voltage stabilizers because of their compact structure and efficient voltage regulation performance.
Final Thoughts
Electrical coils are one of the core components behind modern power conversion and electrical control systems. Whether used in transformers, voltage stabilizers, motors, generators, or renewable energy equipment, coil design directly affects efficiency, temperature performance, and long-term reliability.
As industrial power systems continue moving toward higher efficiency and smarter energy management, demand for high-quality transformer and stabilizer coils will continue to grow.
At ZHENGXI, we specialize in manufacturing reliable transformer coils, voltage stabilizer windings, and customized power solutions for industrial applications worldwide. With advanced winding technology, strict quality control, and customized voltage designs, we help customers achieve safer, more stable, and more efficient power systems.
If you are looking for customized transformer coils or industrial voltage stabilization solutions, feel free to contact our team for technical support and product recommendations.
